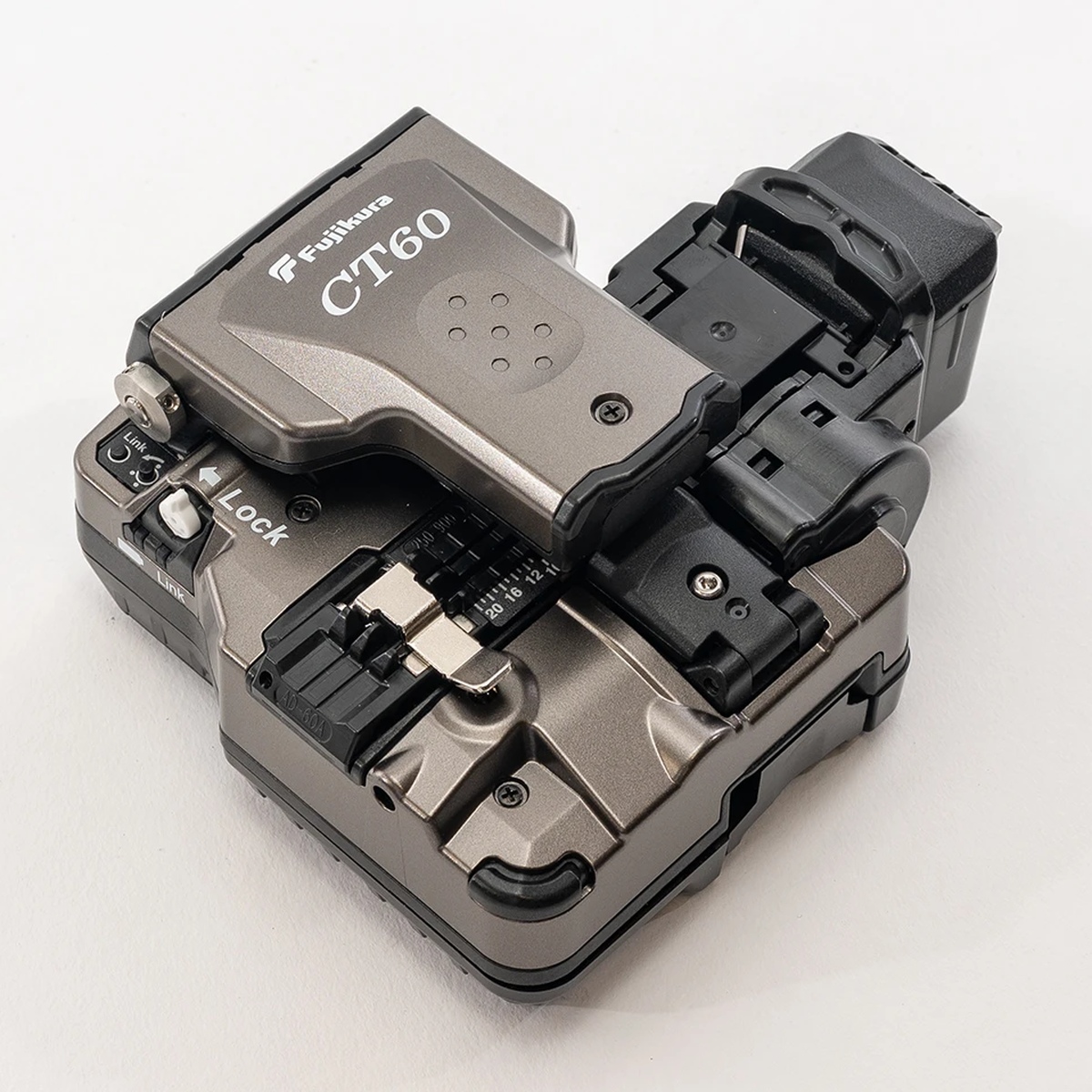

Fujikura
CT60 High Precision Fiber Cleaver
The Fujikura CT60 is a professional optical fiber cleaver designed for stable field workflow, long blade life, and reliable cleaving quality. It supports single fiber, dual fiber, and ribbon applications, and is widely used together with modern fusion splicing systems for FTTH installation, contractor work, and fiber maintenance.
| Brand | Fujikura |
| Model | CT60 |
| Product Type | Optical Fiber Cleaver |
| Fiber Type | Single Fiber, Dual Fiber, and Ribbon Fiber |
| Cladding Diameter | 125 μm |
| Coating Diameter | 250 μm to 3 mm depending on adapter and application |
| Cleave Length | Typically 5 mm to 20 mm depending on fiber holder and coating diameter |
| Cleave Angle | Typical average cleave angle from 0.3° to 0.9° for single fiber applications |
| Blade Life | Up to 60,000 cleaves |
| Connectivity | Bluetooth 5.2 |
| Power Supply | 2 × AAA batteries |
| Dimensions | 113 mm × 92 mm × 54 mm |
| Weight | 280 g |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -40°C to 80°C |
| Operating Humidity | 0 to 95% RH, non-condensing |
| Tripod Mount | 1/4-20 UNC screw hole |
| Key Features | Active Blade Management, replaceable blade, replaceable clamp arm, compact field-ready design, and support for tabletop or handheld operation |
