Komshine
FX39 Fusion Splicer

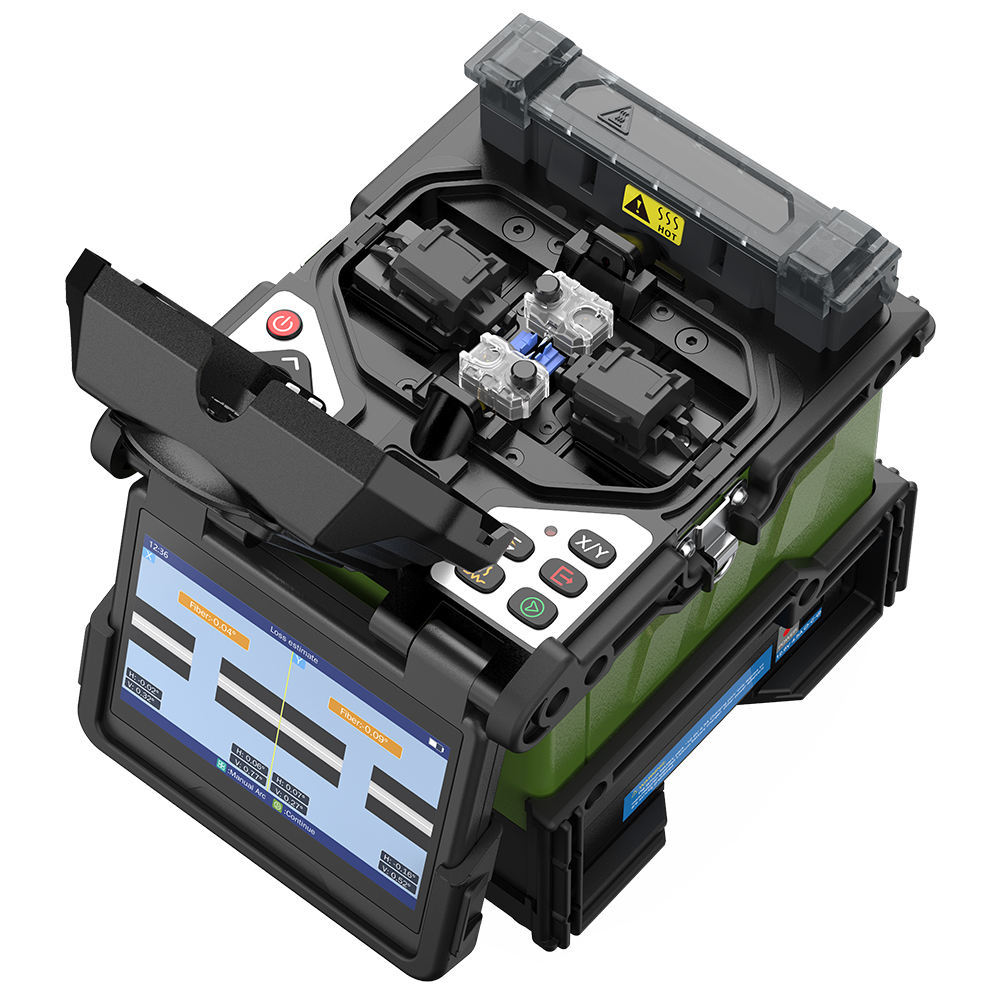

The Komshine FX39 is a high-performance core alignment fusion splicer featuring 6 motors, 6-second fast splicing, and a 4.3-inch touch screen display. Equipped with a 7800mAh large battery supporting 400 cycles of splicing and heating, and 5000 electrodes life. The FX39 delivers average splice loss of 0.01dB and supports SM, MM, DS, NZDS fiber types with a 3-in-1 fiber holder design.
| Alignment Method | Core Alignment (6 Motors) |
| Applicable Fibers | SM(G.652/G.657), MM(G.651), DS(G.657), NZDS(G.655) |

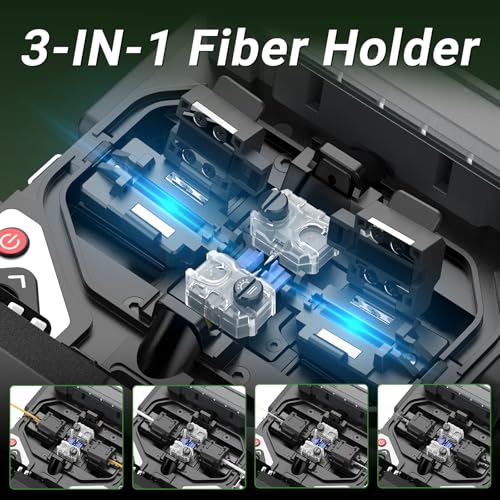

| Fiber Holder | 3-in-1 (SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable) |
| Splice Loss | 0.01dB (average) |
| Splice Time | 6 seconds (fast splicing) |
| Heating Time | 16 seconds (fast heating) |
| Battery Capacity | 7800mAh, 400 cycles of splicing and heating |
| Electrode Life | 5000 times |
| Display | 4.3-inch touch screen LCD |
| Weight | 1.72kg (without battery), 2.25kg (with battery) |
| Power Meter | Included (-70~+10dB or -70~+6dBm) |
| Color | Green |
Ready to source FX39 Fusion Splicer
Share your quantity, destination country, and preferred lead time. We can help confirm the right model, recommended accessories, and shipping approach.
• Product selection support• Quantity and lead-time confirmation• Accessory matching advice• Export delivery assistance
Best forContractors, network build teams, and fiber maintenance projects needing dependable field performance.
Buying supportWe can help match sleeves, cleavers, electrodes, and carrying accessories with your order.
Commercial responseAsk for pricing, delivery lead time, packaging details, and recommended alternatives in one inquiry.
