Orientek

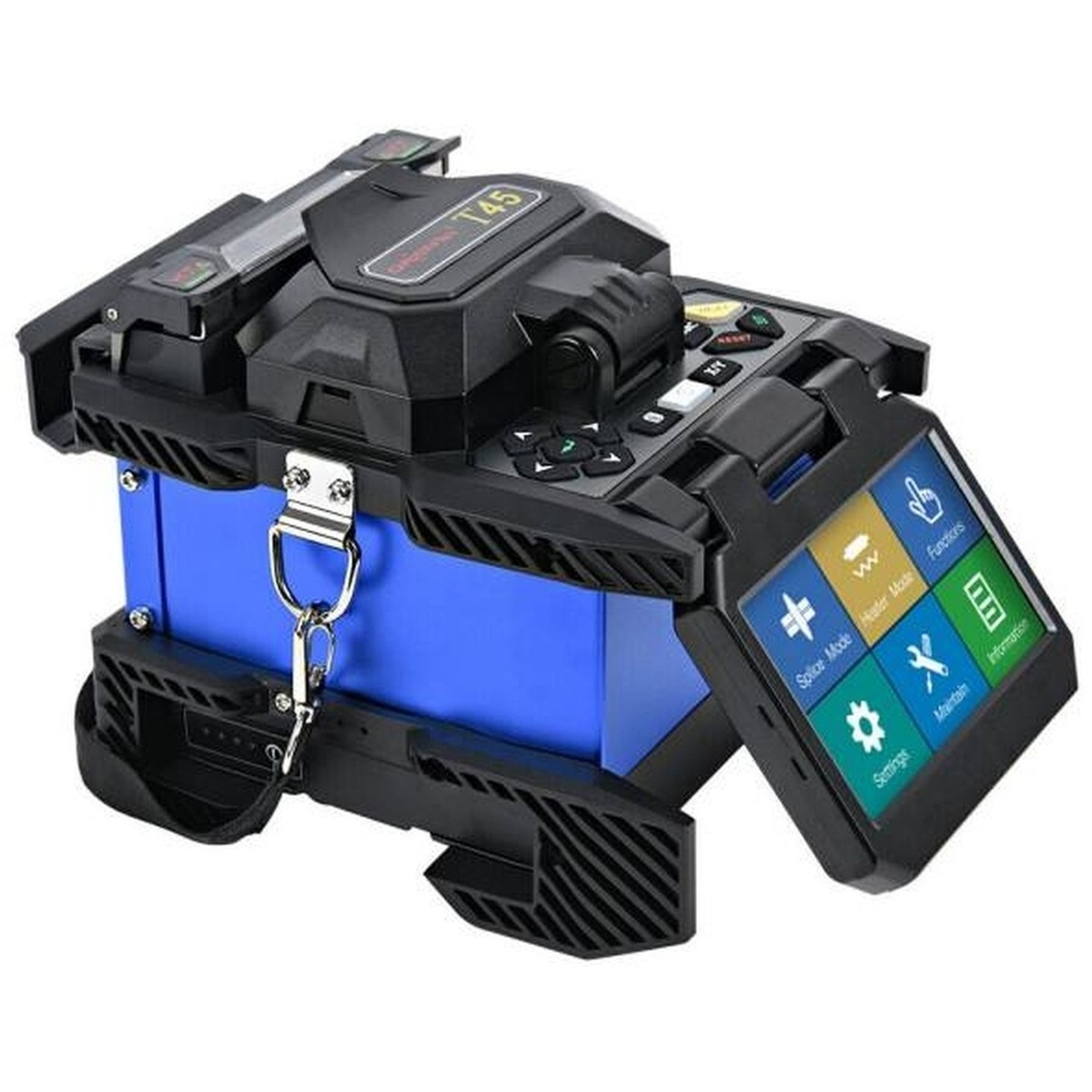

T45 Fusion Splicer
The Orientek T45 is a core alignment fusion splicer featuring a 4.3-inch HD capacitive touchscreen, 320x image magnification, and ultra-short 5mm cleave length fiber splicing. With 300 splice modes, 100 heating modes, and built-in modular lithium battery supporting 330 splices and heats. Fast 5s (quick) / 7s (standard) splicing and 10s (quick) / 18s (standard) heating.
| Alignment Method | Core Alignment |
| Applicable Fibers | SM/MM/DS/NZDS/BIF/UBIF |
| Fiber Diameter | 0.25mm/0.9mm/3.0mm/Flat/Drop cable |
| Cleaving Length | 8-16mm (250μm coating), 16mm (900μm) |
| Splice Loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS/BIF) |
| Return Loss | Better than 60dB |

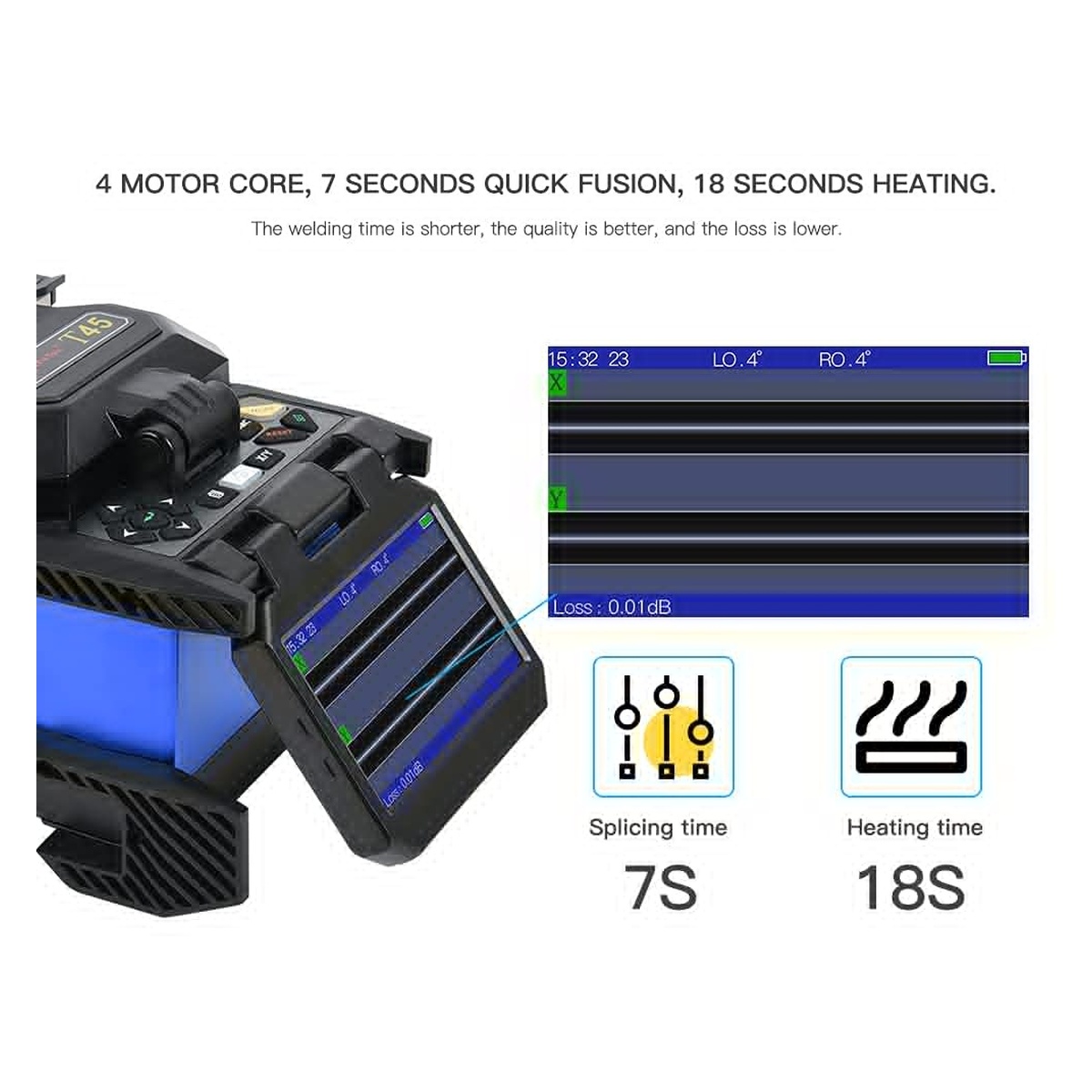

| Splice Time | 7s (typical) / 5s (fast mode) |
| Heating Time | 18s (typical) / 10s (fast mode) with S-160 (60mm) sleeve |
| Splice Programs | 300 splice modes, 100 heating modes |
| Storage | 4,000 splice results |
| Battery | 330 splice & heat cycles (7800mAh lithium polymer) |

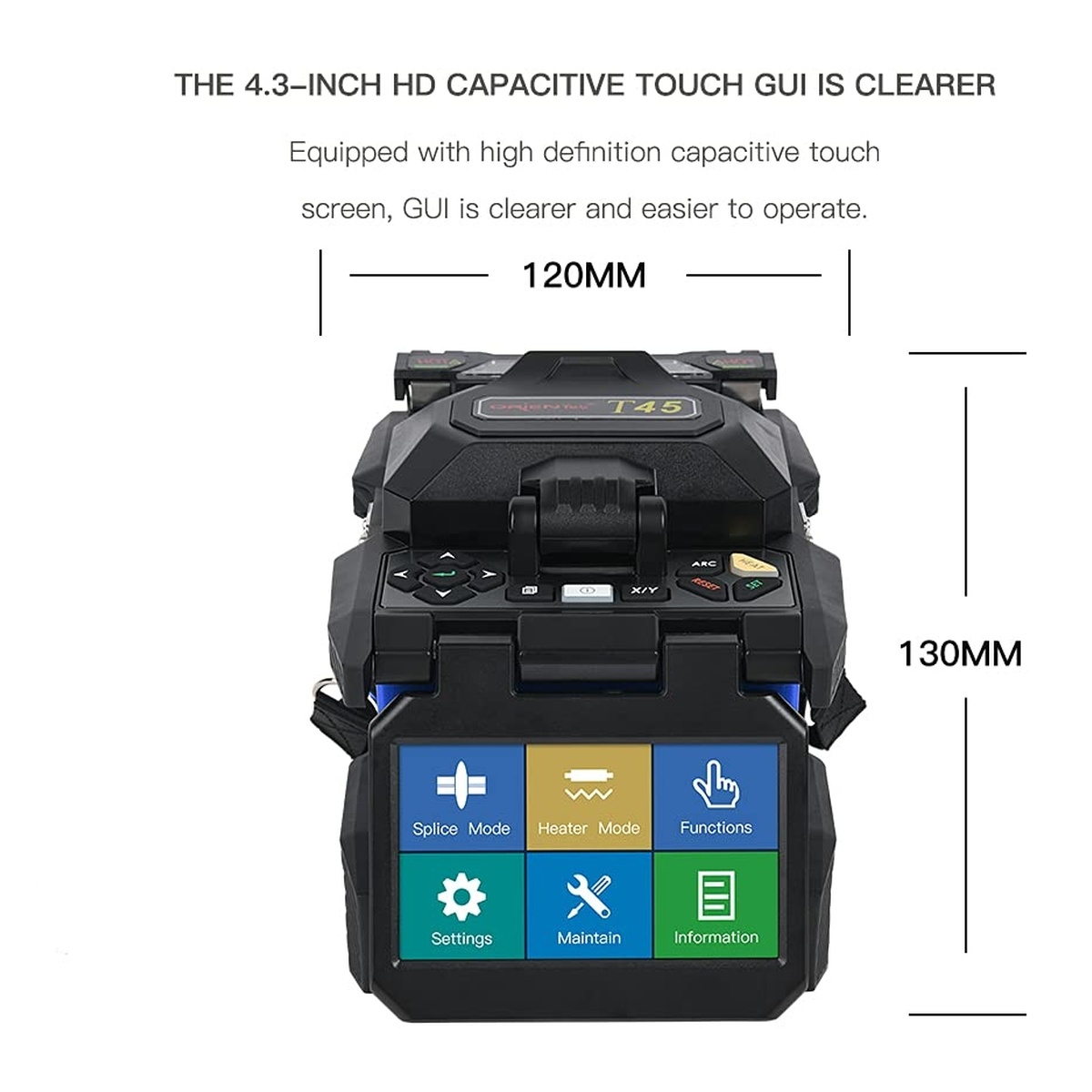

| Display | 4.3-inch HD capacitive touchscreen |
| Magnification | X/Y 330X, 170X |
| Weight | 1.93kg (with battery) |
| Data Interface | USB 2.0 |
Ready to source T45 Fusion Splicer
Share your quantity, destination country, and preferred lead time. We can help confirm the right model, recommended accessories, and shipping approach.
• Product selection support• Quantity and lead-time confirmation• Accessory matching advice• Export delivery assistance
Best forContractors, network build teams, and fiber maintenance projects needing dependable field performance.

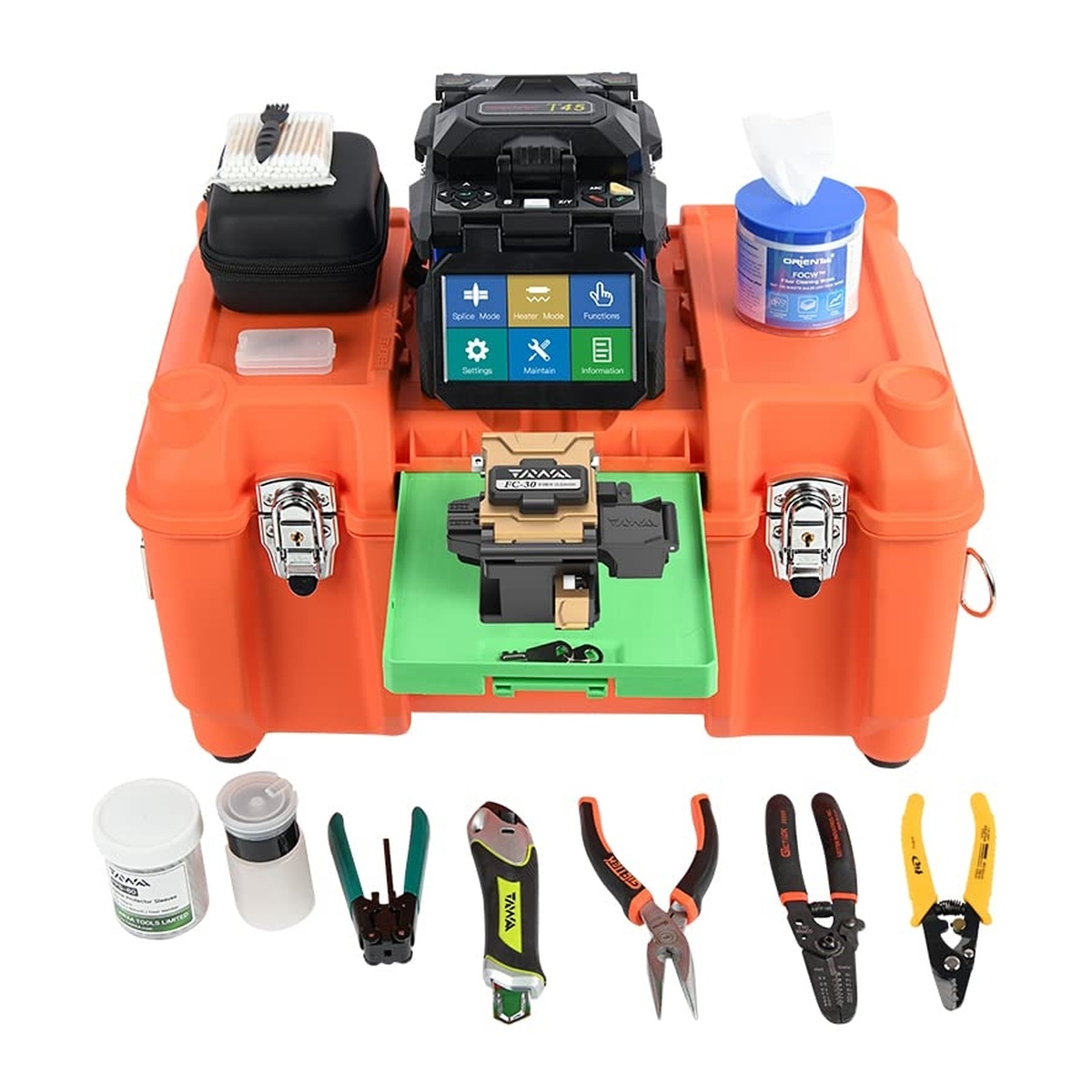

Buying supportWe can help match sleeves, cleavers, electrodes, and carrying accessories with your order.
Commercial responseAsk for pricing, delivery lead time, packaging details, and recommended alternatives in one inquiry.
